Descripción

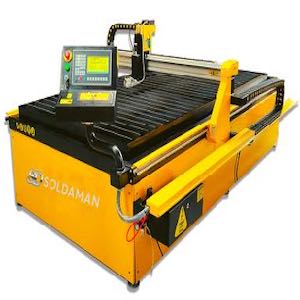

High Performance CNC Plasma
X-Axis Travel = 1500mm
Y-Axis Travel = 3000mm
Z-Axis Travel = 150mm
Gantry Clearance = 240mm
Distance between uprights = 1888mm

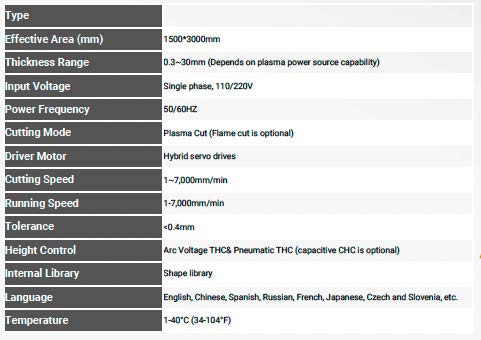

Specifications:
– One torch car for plasma
– CNC Control System Power requirements = 220V, 1-phase
– Arc Voltage THC sensor for plasma cut thick plate on Z
– Anti collision device for torch protection
– Table: steel V-Grid with air table
– Drive system: Precision rubber belt+rack-n-pinion on X / Y, Ball screw on
ZAxis.
Larger V-wheel clamp+slid ball rail with the anti-over-location structure.
– Hybrid Servo Motors and Drivers
– Position accuracy : +/-0.1mm
– Cutting accuracy: +/-0.4mm
– Approx. weight = 1125KG
– Air table can hold 30mm plate max
– Software: fastcam pro mini with auto nesting to import AutoCAD files
(DWG &DXF)
